產品特點

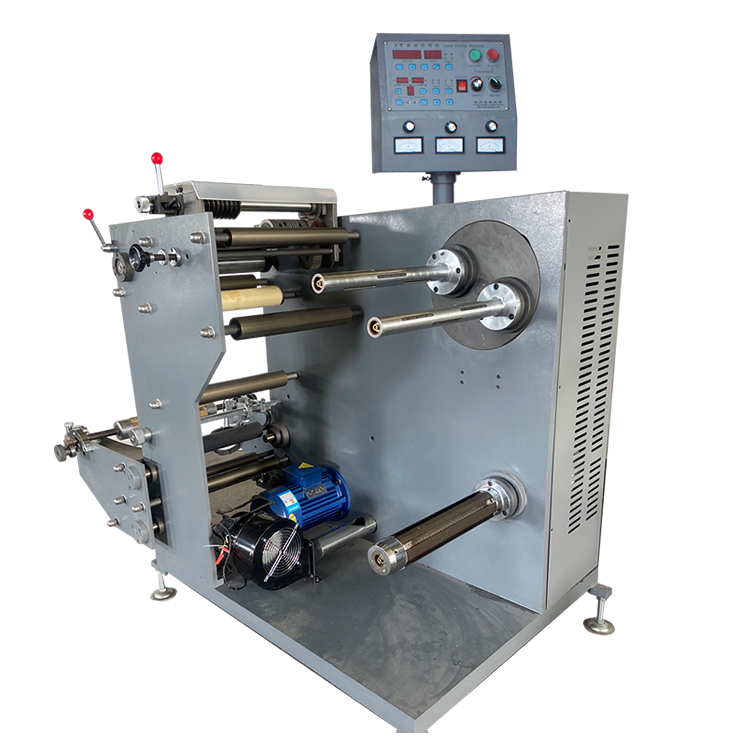

FQ350型自動分切機是自動模切機的配套產品，此機適用于窄幅紙張分切.它具有自動計米功能，設定長度、數量自動停機，放卷由光電自動糾偏控制等功能。整機結構緊湊、速度快、效率高、分切準確、操作簡單、運行平穩等特點。
◎CHARACTERISTICS
350 type automatic cutting machine is an automatic die-cutting machine accessory products, this machine is applicable to a narrow range of paper cutting. It has automatic meter, counting, automatic shutdown, set the length of the number, the unwinding by photoelectric automatic deviation control etc.. The machine structure is compact, fast speed, high efficiency, accurate slitting, simple operation, smooth running characteristics.
◎主要技術參數
Main Technical Parameter
型號type
分切速度/Cutting Speed
卷筒紙最大寬度/Max Web Width
最大放卷直徑/Max Unwinding Diameter
最大收卷直徑/Max Rewinding Diameter
分切精度/The cutting precision
外形尺寸/Overall Diameters
整機重量/Machine Weight
主電機功率/The main motor power
放卷磁粉張力
收卷磁粉張力
|
FQ350
200m/min
350mm
500mm
600mm
±0.5mm
1600×1410x1200(mm)
約800kg
1.5kw
5kg
2.5kg
|
|
